TOA have launched a powered version of its very successful and efficient Horn Speaker in addition to its new SIP Intercom System which can integrate to its N-8000 IP Intercom Range as well.
Providing 113dB@1w@1m, the SC-P620 horn speaker has a built-in amplifier. No long cable runs are therefore required. Simply connect to the audio output of the CCTV camera and power. Communication with subjects viewed on the CCTV system creates a new dimension to the security and access control system. Thick stainless steel mounting brackets are supplied with the speaker.

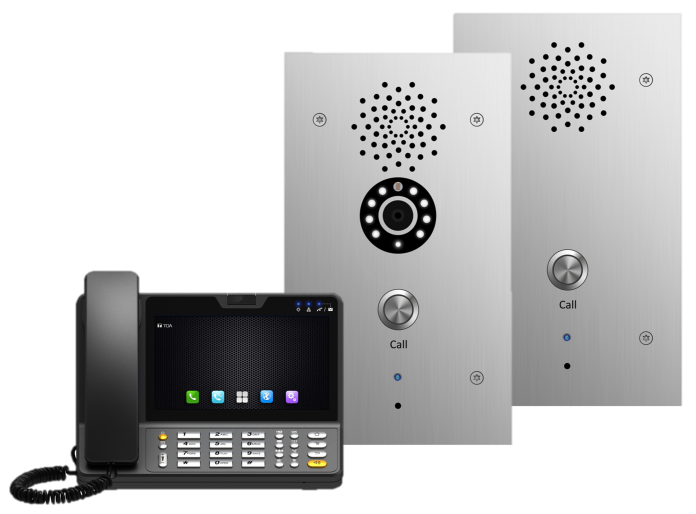

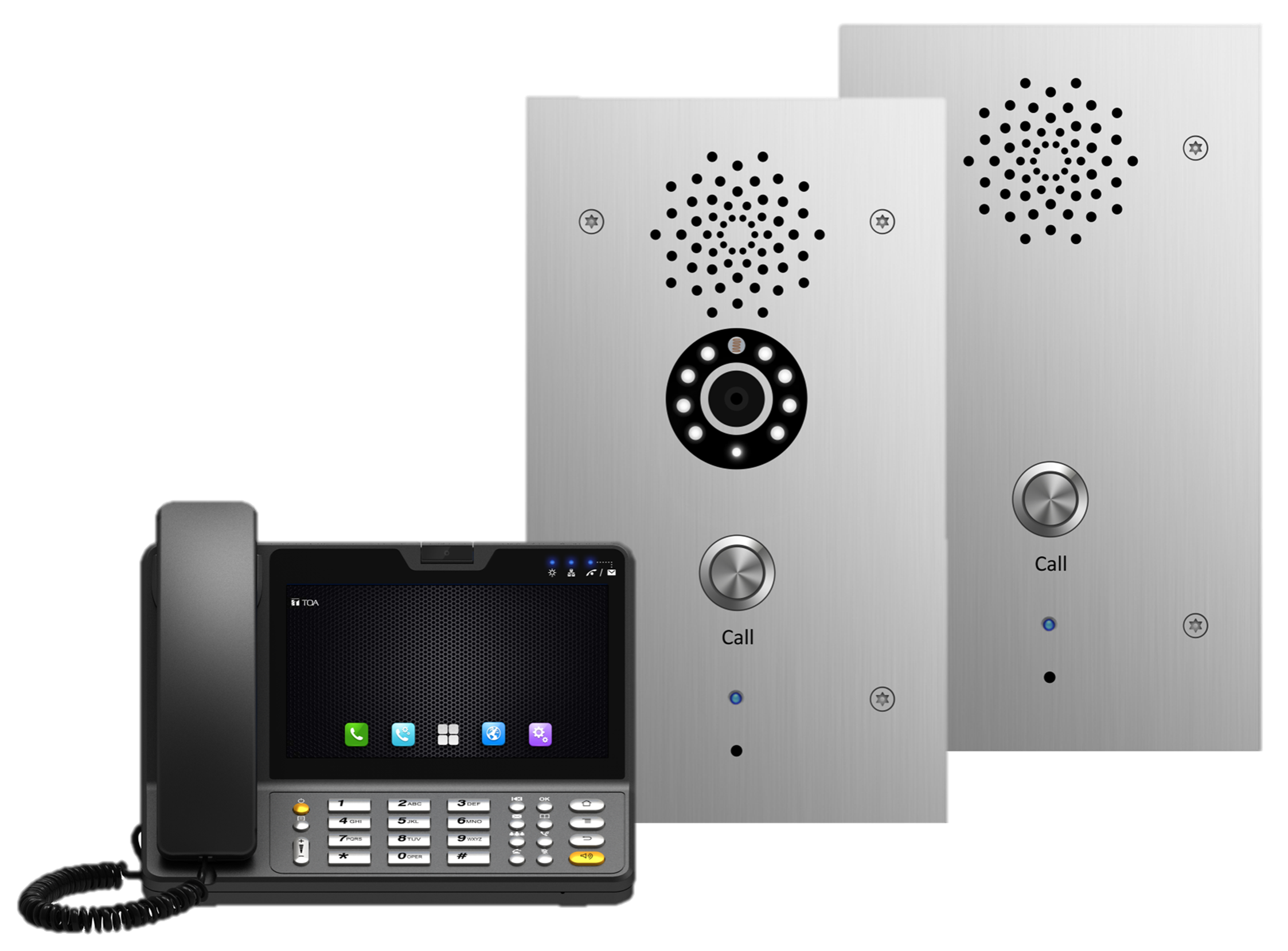

| The new N-SP80 Series SIP Intercom is a smart product that is quick and easy to set up, opening a world of access control which employs the Session Initiation Protocol to enable both audio and video communication. Compatible with the G.722 audio codec, the N-SP80 supports high-quality audio and video transmission. The device features easy unlocking operation that provides simple and easy access to controls. It is therefore ideal for installation at building entrances, carpark gates / booms or any other points-of-entry.
The TOA N-8000 IP Intercom System consists of IP to IP (standalone) stations and two and four-wire controlled 16-port and 8-port exchange-based systems, all of which can be integrated with each other to provide multiple options depending on the geographic layout and user requirements. The newly expanded TOA N-8000 Series IP Network Intercom offers flexible communications for up to 3072 stations on existing corporate local and wide-area data networks. The new IP intercom products occupy minimal network bandwidth (130 Kbps maximum) for station-to-station calls and can be controlled and monitored through software or Web browser. Programmable system functions include 192 paging zones, time-based call forwarding and scan monitoring. The backbone of the new system is the compact N-8000EX Exchange which supports 16 stations and occupies only one rack space. Features include a 10/100BaseT port for connection to standard network hardware and two paging audio outputs. Larger systems can be easily configured with up to 192 exchanges and 3 072 stations. The N-8000MI Multi-Interface Unit features telephone interface, BGM input, paging outputs, control signaling plus functions as an interface to legacy TOA EXES intercom systems. Three new station exchanges have now been introduced, further expanding the system’s capabilities. In addition, the N-8400RS Exchange uses a new line of 4-wire substations. These allow easy retrofit and upgrade of existing 2 and 4-wire systems. Two-wire stations include the N-8000MS Multifunctional Master Station, equipped with a 32-character alphanumeric LCD display, handset and speed dial functions; the N-8010MS Standard Master Station with keypad and handset; the N-8020MS Industrial Master Station, built to withstand severe environmental conditions; and the N-8011MS Hands-Free Master Station offering hands-free simultaneous two-way (duplex) communication via an ambient noise sensing function. For custom station applications, TOA offers the N-8031SB Hands-free Master Station Board Unit and the N-8050SB Hands-free Substation Board Unit. The N-8510MS IP Master Station provides the same functionality as the 2-wire N-8010MS. The N-8600MS IP Multifunctional Master Station with LCD display and the N-8650DS weather-resistant IP Door Station are now available too. A new line-up of optional IP interfaces allows expanded system operations. These include the N-8000AL Analogue Phone Interface, which allows any standard analogue phone to be used as a master station. The N-8000AF Audio Interface provides audio signal connections to paging amps, playback sources, recording devices and schedule clocks. It also incorporates a built-in bell scheduler and tone library for classroom change signals when used as part of a school access control and communication system. Up to 16 different schedules of 64 events each may be programmed. The N-8000CO Outside Line Interface provides access to an outside telephone line for dial-in calling, paging and control, as well as outbound forwarding of calls made to master stations. Lastly, the N-8000DI Direct Interface provides contact ‘Ins and Outs’ for control of paging amps, door/gate access, CCTV camera call-up and LED status panels. It may be accessed by standard controls or dialing commands from any master station on the network. The system is a server-free system. As a result, the rest of the system will continue to function if any unit is disabled. No license is required. The N-8000 IP Intercom is ideal for airports, mines, factories, banks, shopping malls, schools, universities, railway stations, prisons and hospital as well as many more applications. For more info visit: www.toasa.co.za |
